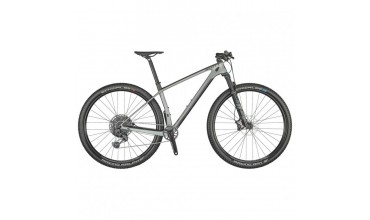

SCOTT SCALE 910 AXS

Frame

Scale 3 Carbon / IMP Technology / HMF

BB92 / SW DM dropouts for Boost 12x148mm

SDS2 advanced Shock & Standing Damping System

ICCR Cable routing

Fork

FOX 32 SC Float Performance Air Grip 3

3-Modes / 15x110mm QR axle / 44mm offset / tapered steerer

Lockout / Reb. Adj. / 100mm travel

Remote System

SCOTT RideLoc Technology / below bar remote

3 modes / integ. Grip clamp

Rear Derailleur

SRAM X01 Eagle AXS / 12 Speed

Wireless Electronic Shift System

Shifters

SRAM Eagle AXS Controller

Crankset

SRAM Stylo Eagle DUB Boost

32T

BB-Set

SRAM DUB PF integrated / shell 41x92mm

Chain

SRAM CN NX Eagle

Cassette

SRAM PG1230 / 11-50 T

Brakes

Shimano SLX M7100 Disc

Rotor

Shimano SM-RT64 CL / 180 ant e 160 post

Handlebar

Syncros Fraser 1.5 / Alloy 7050 D.B.

T shape Flat / 9° / 740mm

Syncros Pro lock-on grips

H'stem

Syncros FL1.5

6° / integrated Spacer & Top Cap

2014 Alloy / 31.8mm / 1 1/8"

Seatpost

Syncros Duncan 1.5 / 10mm offset

31.6x400mm

Seat

Syncros Belcarra Regular 2.0

CRMO rails

Headset

Syncros Pro Drop in / Tapered 1.5"-1 1/8"

Bearing diameter size 42mm and 52mm

Hub (Front)

Formula CL-811 / 15x110mm

Hub (Rear)

Formula CL-148S / Boost 12x148mm

Spokes

Stainless Black 15G / 1.8mm

Rims

Syncros X-25 / 32H / 25mm

Tubeless ready

Front Tire

Schwalbe Racing Ray 29×2,25" / EVO pieghevoli / manopole Addix Speed grip / Snake Skin / TLE Tubeless Ready

Rear Tire

Schwalbe Racing Ralph 29×2,25" / EVO pieghevoli / manopole Addix Speed grip / Snake Skin / TLE Tubeless Ready

Extras

SRAM AXS Powerpack

Approx weights in KG 10.90

Approx weights in LBS 24.03

Max. System Weight

128 kg

The overall weight includes the bike

the rider

the equipment

and possible additional luggage
